Jacob - Brass cable glands - Metric - IP69K - M63-1x1,5 - 14mm - Silver - 5 pieces
Stock (pcs.): Backorder

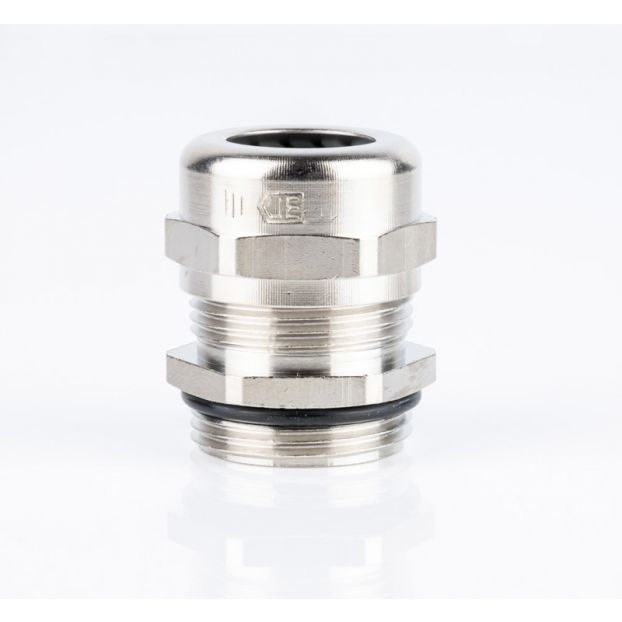

Jacob brass cable glands are nickel-plated. Easy to use, with twist protection, contains integrated anchoring and with a large sealing range. This version has a metric thread.
| Art.no. | 50.663 M1/L |
|---|---|
| Brand | Jacob |
| Material | Metal |
| Material quality | Brass (CuZn39Pb3) |
| Color | Silver |
| Connecting thread | M63-1x1.5 |
| Cable diameter (mm) | 38 - 48 |
| Thread length (mm) | 14 |
| Height in mm | 56.5 |
| Connecting thread type | Metric (EN 60423) |
| Ex-version | No |
| EMC-version | No |
| Temperature range (°C) | -20 up to +100 |
| Flammability class | Not flammable |
| With strain relief | Yes |
| Shock resistant | Yes |
| Halogen-free | No |
| Degree of protection (IP rating) | IP69K |
| Approvals | EN 62444 / UL 514B |
| Wrench width in mm | 65 |
| UL/CSA-File | E140310 |
| Other information | Also available in thread lengths of 10.0 / 11.0 / 13.0 and 14.0 mm. From M50 available with O-ring |
| Properties | Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds |
| PU (pcs.) | 5 |
| PU / Master Carton | 6 |
.
