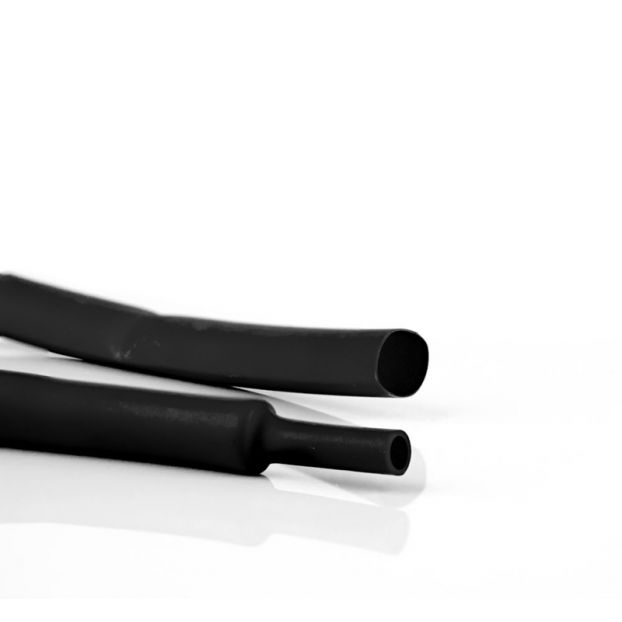

WKK - H-200E - Viton® - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 200 °C - Resistant to chemicals

Starting at € 773.74 Excl. VAT

H-200E thin-wall heat shrink tubing is made of fluoroelastomer (Viton®), for superior impact-, wear- and cut resistance. Excellent for applications where a high resistance to corrosive liquids, fuels, acids, solvents and lubricants is required. Flame retardant. Shrink ratio 2:1.
View versions and order

Versions

Grouped product items
Quantity Art.no. Length (mtr) As supplied: inner diameter in mm (min.) After recovery: inner diameter in mm (max.) After recovery: wall thickness in mm (min.) Packaging type PU / Master Carton Price excl. VATStock (pcs.)
232142801 50 3.2 1.6 0.76 On a reel 10
€ 773.74 Excl. VAT
14
232152801 50 4.8 2.4 0.9 On a reel 10
€ 773.74 Excl. VAT
24
232162801 50 6.4 3.2 0.9 On a reel 8
€ 1,161.23 Excl. VAT
5
232182801 50 9.5 4.8 0.9 On a reel 6
€ 1,532.44 Excl. VAT
11
232192501 30 12.7 6.4 1.1 On a reel 5
€ 1,188.74 Excl. VAT
3
2321112501 30 19 9.5 1.3 On a reel 4
€ 1,829.43 Excl. VAT
1
More Information
BrandWKK
Heat shrink tubing modelThin-wall (flexible) heat shrink tubing
Heat shrink tubing typeH-200E
Shrink ratio2:1
ColorBlack
Flame retardantVW-1
Self-extinguishingSelf-extinguishing in 30 seconds
With adhesiveNo
PrintableYes
Operating temperature (°C)-55 up to +200
Minimum full recovery temperature (°C)+175
Longitudinal change0 up to 10% max.
Material qualityCrosslinked fluoroelastomer
UL / CSA approvalfile E249362 (only UL, no CSA)
MIL-SPECYes
UV resistantYes
Halogen-freeNo
MeetsRoHS, SAE-AMS-DTL-23053/13
PropertiesSuperior abrasion resistance / Flame retardant and self-extinguishing in 30 seconds / High temperature resistance / Excellent resistance to aggressive chemicals and solvents
