WKK - Insulated ferrules - TWIN - Ct 015008 - Rood - 500 pieces
Stock (pcs.): 1

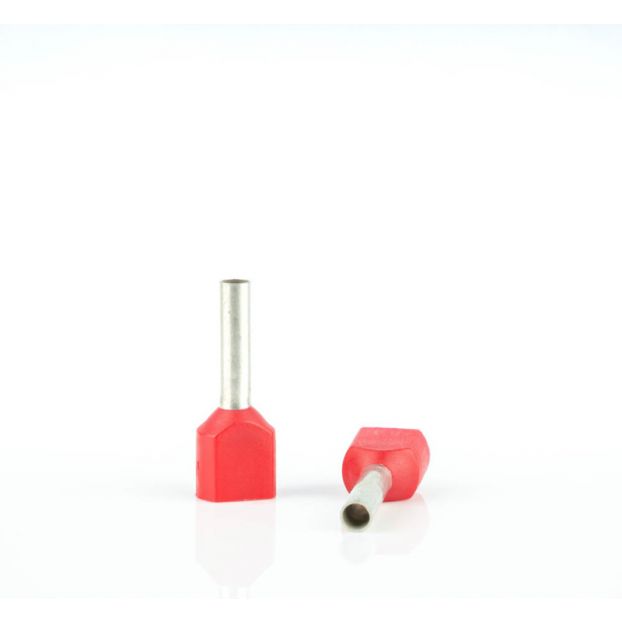

Double ferrule, also called 'Twin'. A ferrule is used to create an optimal electrical contact between copper wires in the core of cables and the mounting clip. All of our ferrules meet the DIN 46228/1 standardization.
| Art.no. | 53842101 |
|---|---|
| Brand | WKK |
| Ferrule type | Ct 015008 |
| Material | Copper |
| Insulation material | Polypropylene |
| Temperature range (°C) | Up to +105 |
| Minimum coating thickness | 3 µm |
| Approvals | DIN 46228/4 |
| Mm² | 1.5 |
| AWG | 2 x 16 |
| L1 (mm) | 16 |
| L2 (mm) | 8 |
| D1 (mm) | 2.2 |
| D2 (mm) | 3.6 |
| S1 (mm) | 0.15 |
| Color | Red |
| PU (pcs.) | 500 |
.
