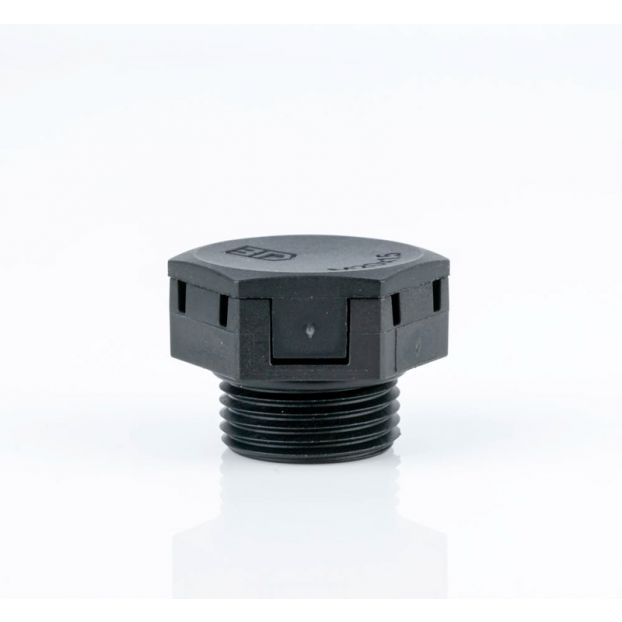

Jacob - Plastic venting elements - Metric - M12x1,5 - Black - 100 pieces

€ 250.07 Excl. VAT

Stock (pcs.): 1

Jacob venting elements made of plastic (polyamide PA6 V-0), also called condensation plugs. With metric thread. Perfectly suited for protecting closed electronic housing against condensation when temperature and pressure changes occur. Ensure continuous ventilation and adjustment of the internal pressure through the PES membrane.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information
Art.no.	JDAE12PA/SW
Brand	Jacob
Material	Plastic
Material quality	Polyamide PA6 V-0
Color	Black
Connecting thread	M12x1.5
Thread length (mm)	10
Size	M12x1.5
Height in mm	17.8
Connecting thread type	Metric (EN 60423)
Typical air flow	> 400 ml / min / cm2 at Δp = 0,07 bar
Water entry pressure	≥ 0.83 bar (dynamic WEP, 30 seconds)
Temperature range (°C)	-40 up to +100
Degree of protection (IP rating)	IP66 / IP68 – 0,6 bar (60 min.) / IP69K
Properties	Protection for hermetically sealed electro-technical and electronic enclosures against condensation water from alternating temperature and pressure. Continuous ventilation and adaption of the inner pressure. Hydrophobic and oleophobic PES-membrane.
Comment	For the selection of the correct blanking plug, Da1 may be 1 mm smaller (max.) than Ø Cmax.
PU (pcs.)	100
PU / Master Carton	40
