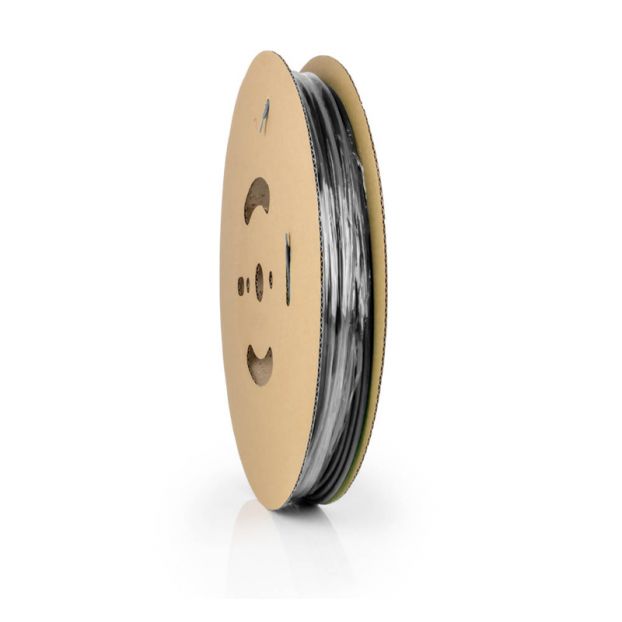

WKK - H-2(HF) - Thin-wall heat shrink tubing - 2:1 - Halogen free - Operating temperature up to 125 °C - 38.1/ 19.0 - Black - On a reel - 30 meters
Stock (pcs.): 58
The H-2(HF) is halogen free flexible heat shrink tubing. Excellent flame-retardant and insulating properties. Very flexible and shrinks at a low temperature. Often used in the electronics, communication and automotive industry.
| Art.no. | 2171162501 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2(HF) |
| Shrink ratio | 2:1 |
| Color | Black |
| Length (mtr) | 30 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 38.1 |
| After recovery: inner diameter in mm (max.) | 19.0 |
| After recovery: wall thickness in mm (min.) | 1 |
| Packaging type | On a reel |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| With adhesive | No |
| Printable | Yes |
| Operating temperature (°C) | -55 up to +125 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +100 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA |
| MIL-SPEC | No |
| UV resistant | Yes |
| Halogen-free | Yes |
| Properties | Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds |
| PU / Master Carton | 5 |
.
