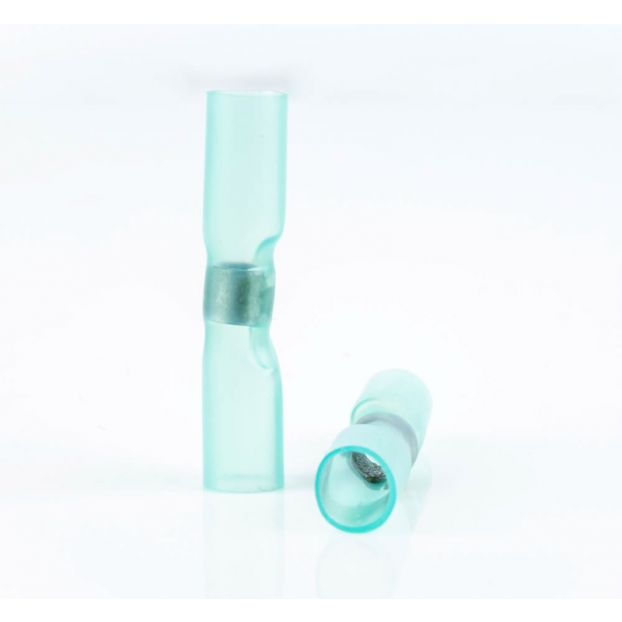

WKK - Heat shrink butt connectors - Insulated - Heat shrinkable - 1,5 ~ 2,5mm - Blue - 100 pieces
Stock (pcs.): 1574
Heat shrink butt connectors, for easily connecting wires (waterproof). The heat shrink tubing ensures a tight, waterproof connection. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
| Art.no. | 4844242671 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Butt connectors |
| Temperature range (°C) | -55 up to +125 |
| Shrink temperature (°C) | -60 tot +100 |
| Insulation material | Nylon |
| Insulation color | Blue |
| Wire range (mm²) | 1.5 ~ 2.5 |
| AWG | 16 ~ 14 |
| Length (mm) | 35 |
| Shrink ratio | 3:1 |
| Approvals | RoHS |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| Properties | 100% waterproof with heat shrink tubing |
| PU (pcs.) | 100 |
.
