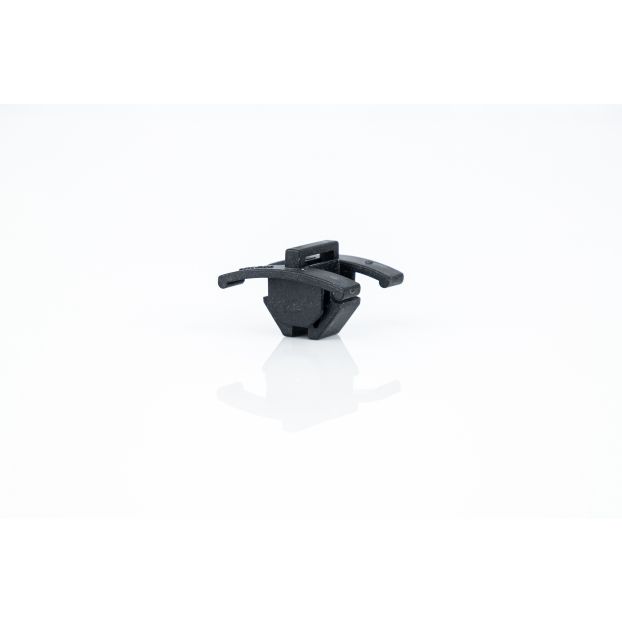

WKK - Solar clips

Solar clips are specially designed for the solar panel industry, and are perfectly suited for attaching cables, wires and pipes on a profile. The size of the profile is of importance when choosing the right solar clip. Available in three versions.

View versions and order

Downloads

Cable management solutions for the solar industry

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Fixation clip type

Mounting of clip

Direction of cable in relation to profile

Mounting of cable

Position of cable in relation to profile

Supplied with cable tie

Grouped product items
Art.no.	Fixation clip type	Mounting of clip	Direction of cable in relation to profile	Mounting of cable	Position of cable in relation to profile	Supplied with cable tie	PU (pcs.)	PU / Master Carton	Price excl. VAT	Stock (pcs.)
64611071	SKC 1	Profile thickness of 0.7 - 3.0 mm	Longitudinal direction of the profile	2x 6.0 mm, without cable tie	Side	Not required	100	50	Request a quote	965
64621071	SKC 2	Profile thickness of 0.7 - 3.0 mm	Longitudinal direction of the profile	2x 6.0 mm, without cable tie	Side	Not required	100	80	Request a quote	6
64641071	SKC 4	Profile thickness of 0.7 - 3.0 mm	Longitudinal direction of the profile	2x 6.0 mm, without cable tie	Top side	Not required	100	50	Request a quote	688
64671071	SKC 7	Profile thickness of 0.7 - 3.0 mm	Right-angled on the profile	2x 6.0 mm, without cable tie	Side	Not required	100	80	Request a quote	1016
64711071	SC1	M10 / 7.0 mm deep	Longitudinal direction of the profile	Fixation with cable tie	Top side	No	100	100	Request a quote	Backorder
64721071	SC2	M8 / 6.9 mm deep	Longitudinal direction of the profile	Fixation with cable tie	Top side	No	100	50	Request a quote	21
64712071	SC1	M10 / 7.0 mm deep	Longitudinal direction of the profile	Fixation with cable tie	Top side	Yes	100	25	Request a quote	Backorder
64722071	SC2	M8 / 6.9 mm deep	Longitudinal direction of the profile	Fixation with cable tie	Top side	Yes	100	25	Request a quote	Backorder
64751071	SC5	M14 / 6,5+ mm deep	Longitudinal & right-angled to the profile	Fixation with cable tie	Top side	No	100	100	Request a quote	897
64752071	SC5	M14 / 6,5+ mm deep	Longitudinal & right-angled to the profile	Fixation with cable tie	Top side	Yes	100	40	Request a quote	Backorder

More Information
Brand	WKK
Metal clamp material	Spring steel, hardened coated surface to ensure protection against corrosion
Material plastic clip	Polyamide 6.6 HS
Color	Black
Impact resistant	Yes
Heat resistant	Yes
UV resistant	Yes
Weatherproof	Yes
Temperature range (°C)	-40 up to +120
