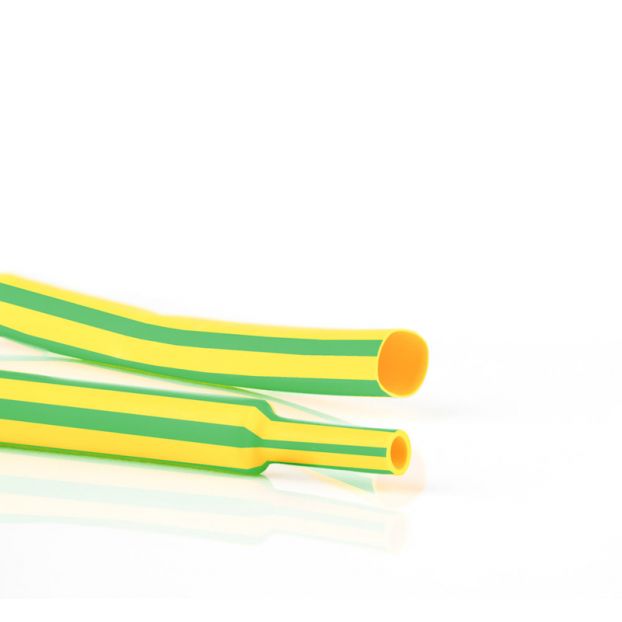

WKK - H-2F(Y/G) - Thin-wall heat shrink tubing - 2:1 - Yellow/Green - Operating temperature up to 135 °C - 9.5/ 4.8 - Length piece - 1 meter
€ 3.05 Excl. VAT
Stock (pcs.): 1366
The H-2F(Y/G) is striped in yellow and green by default, and is therefore perfect for use on grounding cables. Excellent physical, chemical and electrical properties. Free from environmentally polluting raw materials. Shrink ratio 2:1. Flame retardant.
| Art.no. | 2181814101 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2F(Y/G) |
| Shrink ratio | 2:1 |
| Color | Yellow / Green |
| Length (mtr) | 1 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 9.5 |
| After recovery: inner diameter in mm (max.) | 4.8 |
| After recovery: wall thickness in mm (min.) | 0.54 |
| Packaging type | Length piece |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| With adhesive | No |
| Printable | Yes |
| Operating temperature (°C) | -55 up to +135 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +100 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | Yes |
| UV resistant | No |
| Halogen-free | No |
| Master contract | 240199 |
| Meets | RoHS, RoHS, SAE-AMS-DTL-23053/5 class 1 |
