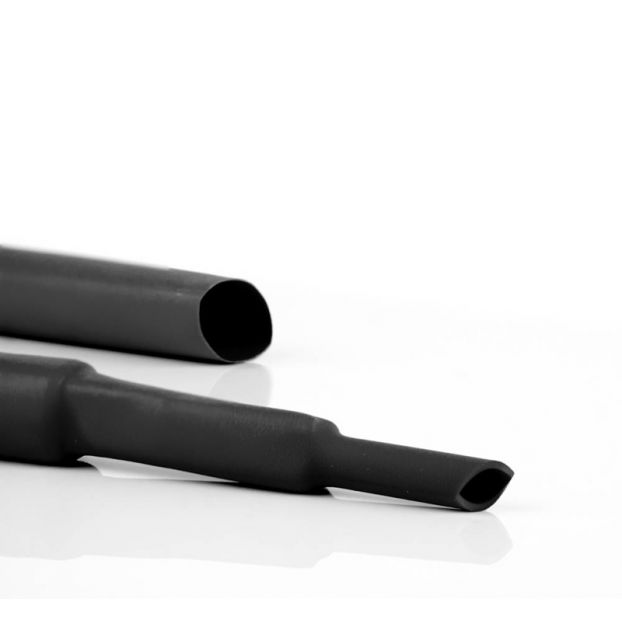

WKK - H-5(3X)-F - Thin-wall heat shrink tubing - 3:1 - With adhesive - Operating temperature up to 125 °C

Starting at € 2.45 Excl. VAT

H-5(3X)-F thin-wall heat shrink tubing (shrink ratio 3:1) contains co-extruded adhesive lining, which melts when the tubing is being shrinked, for better insulation and sealing. Applications include, among others, the sealing of electrical components in the automotive and communications industry. Flame retardant.
View versions and order

Versions

Grouped product items
Quantity Art.no. Color Length (mtr) As supplied: inner diameter in mm (min.) After recovery: inner diameter in mm (max.) After recovery: wall thickness in mm (min.) Packaging type PU / Master Carton Price excl. VATStock (pcs.)
221233301 Black 150 3.0 1.0 1 On a reel 7
€ 318.81 Excl. VAT
98
221253101 Black 75 4.8 1.5 1 On a reel 8
€ 164.21 Excl. VAT
90
221263101 Black 75 6.0 2.0 1 On a reel 6
€ 329.35 Excl. VAT
392
221282801 Black 50 9.0 3.0 1.4 On a reel 4
€ 216.62 Excl. VAT
321
2212102501 Black 30 12.0 4.0 1.6 On a reel 6
€ 180.41 Excl. VAT
4
2212142501 Black 30 19.0 6.0 2.15 On a reel 7
€ 282.90 Excl. VAT
570
2212162501 Black 30 24.0 8.0 2.4 On a reel
€ 392.30 Excl. VAT
255
2212182501 Black 30 30.0 10.0 2.4 On a reel 2
€ 446.22 Excl. VAT
17
2212252501 Black 30 40.0 13.0 2.4 On a reel 2
€ 686.51 Excl. VAT
74
221233311 Brown 150 3.0 1.0 1 On a reel 7
€ 392.30 Excl. VAT
19
221233321 Red 150 3.0 1.0 1 On a reel 7
€ 392.30 Excl. VAT
4
221233341 Yellow 150 3.0 1.0 1 On a reel 7
€ 392.30 Excl. VAT
3
221233351 Green 150 3.0 1.0 1 On a reel 7
€ 392.30 Excl. VAT
5
221233361 Blue 150 3.0 1.0 1 On a reel 7
€ 392.30 Excl. VAT
Backorder
221233371 Purple 150 3.0 1.0 1 On a reel 7
€ 392.30 Excl. VAT
4
More Information
BrandWKK
Heat shrink tubing modelThin-wall (flexible) heat shrink tubing
Heat shrink tubing typeH-5(3X)-F
Shrink ratio3:1
Flame retardantVW-1
Self-extinguishingYes
With adhesiveYes
PrintableYes
Operating temperature (°C)-55 up to +125
Minimum shrink temperature (°C)+70
Minimum full recovery temperature (°C)+110
Longitudinal change0 up to 10% max.
Material qualityCrosslinked co-extruded adhesive lined polyolefin
UL / CSA approvalUL224 & CSA, file E204071 (only black)
MIL-SPECYes
UV resistantYes
Halogen-freeNo
Master contract240199
MeetsRoHS
